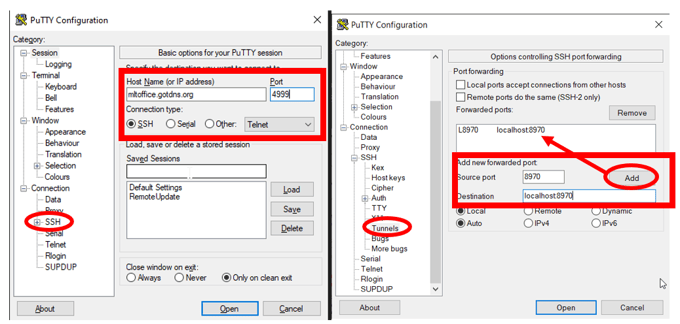

Step 1: Install Putty
https://the.earth.li/~sgtatham/putty/latest/w64/putty-64bit-0.78-installer.msi
- Hostname: mltoffice.gotdns.org
- Port: 4999
- SSH -> Tunnels
- Source Port: 8970
Ensure that you have added the destination localhost:8970

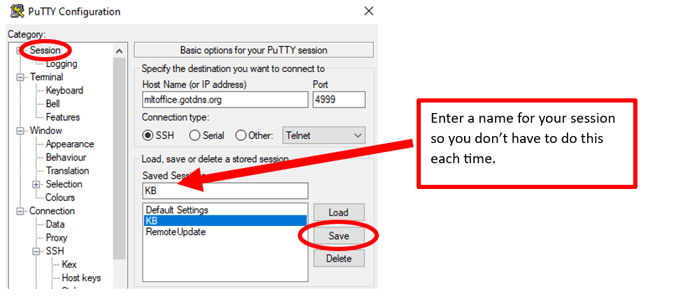

Go back to Session and name your profile and click ‘Save’
Destination: localhost:8970
- Check Port number on http://mltoffice.gotdns.org:4000/
- Username: mlt
- password: dr1v35
ssh -L 8970:localhost:81 pi@localhost -p 5id (id of the unit on mltoffice)
Remember to add 5 before the first number as seen below, if its 4 digits long, add 5 to the first number.
After a successful connection you will see the units name in the terminal.
Step 2: Start Update
Enter the following lines into the terminal and press the enter key after you have copied them in.

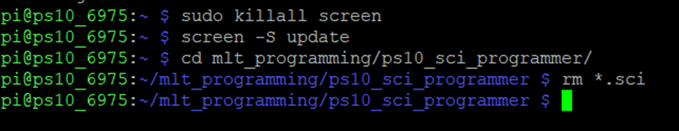

sudo killall screen
screen -S update
cd mlt_programming/ps10_sci_programmer/
rm *.sci
scp -p -P 4999 mlt@mltoffice.gotdns.org:~/git_repos/ps10/ps10_sci_programmer/acdy_scratch03_vartables_v01_62_00_t053.sci /home/pi/mlt_programming/ps10_sci_programmer/acdy_scratch03_vartables.sci
password: dr1v35

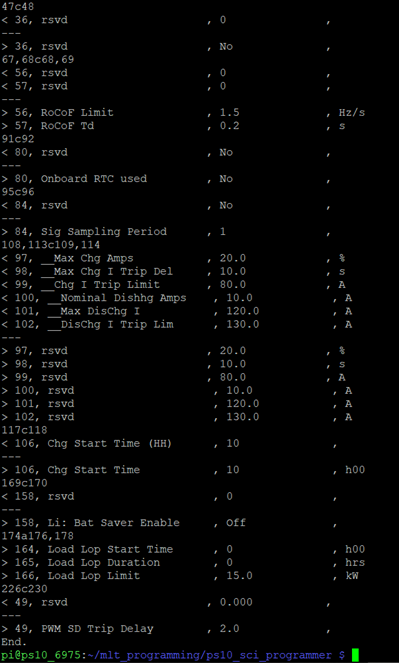

sudo bash /home/pi/scripts/ps10/prog.sh
Step 3: Restart Screens
Enter the following lines into the terminal and press the enter key after you have copied them in.

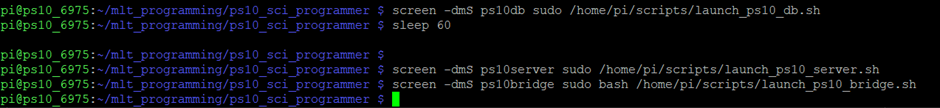

screen -dmS ps10db sudo /home/pi/scripts/launch_ps10_db.sh
sleep 60
screen -dmS ps10server sudo /home/pi/scripts/launch_ps10_server.sh
screen -dmS ps10bridge sudo bash /home/pi/scripts/launch_ps10_bridge.sh
There will be a one minute pause after you enter the ‘sleep 60’ command into the terminal
After you have entered all these lines into the terminal the update is completed.
