Step1:
Install Putty
https://the.earth.li/~sgtatham/putty/latest/w64/putty-64bit-0.80-installer.msi

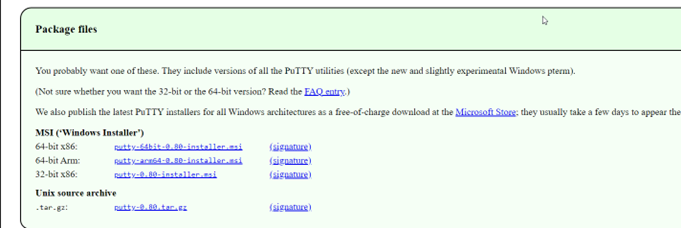

If the above link is broken or dead, please go to the below link and select the latest version.
https://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html

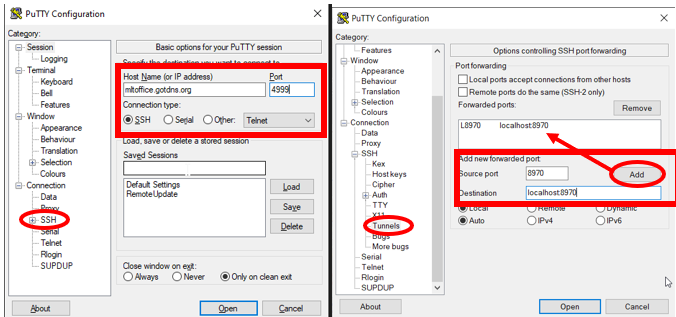

- Hostname: mltoffice.gotdns.org
- Port: 4999
- SSH -> Tunnels
- Source Port: 8970
Step1.1:
Ensure that you have added the destination localhost:8970

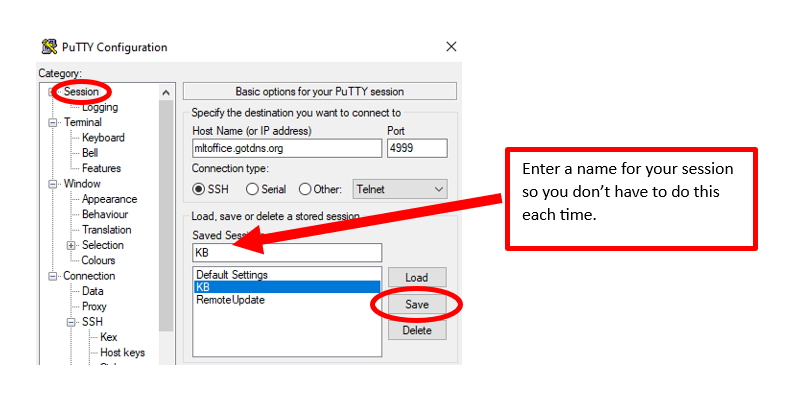

Go back to Session and name your profile and click ‘Save’
Destination: localhost:8970
- Check Port number on http://mltoffice.gotdns.org:4000/
- Username: mlt
- password: ApexR&D

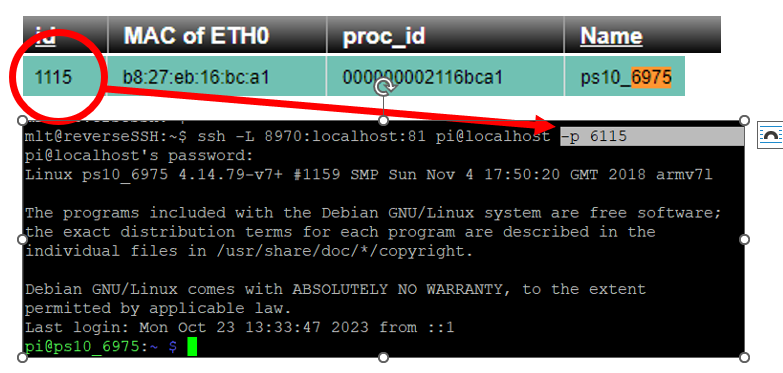

ssh -L 8970:localhost:81 pi@localhost -p 5id (id of the unit on mltoffice)
Password: dr1v35
Remember to add 5 before the first number as seen below, if its 4 digits long, add 5 to the first number.
Step1.2:
After a successful connection, you will see the unit name in the terminal.
Step 2:
Start Update

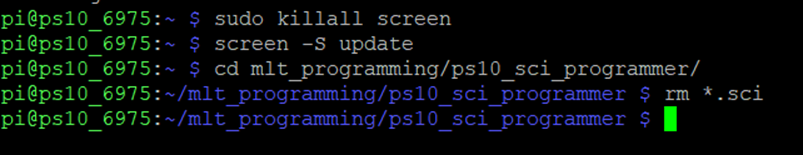

Enter the following lines into the terminal and press the enter key after you have copied them in.
sudo killall screen
screen -S update
cd mlt_programming/ps10_sci_programmer/
rm *.sci
scp -p -P 499 mlt@mltoffice.gotdns.org:~/git_repos/ps10/ps10_sci_programmer/acdy_scratch03_vartables_v01_62_00_t053.sci /home/pi/mlt_programming/ps10_sci_programmer/acdy_scratch03_vartables.sci
The above text which is highlighted is the actual firmware file for version 162.00, if you want to install a specific version of firmware you can change only the highlighted text in the above line to one of the following.
|
acdy scratch03 vartables v01 62 00 t053.sci |
162.00 |
|
acdy scratch03 vartables v01 62 02 t054.sci |
162.02 |
|
acdy scratch03 vartables v01 62 04 t054.sci |
162.04 |
password: ApexR&D

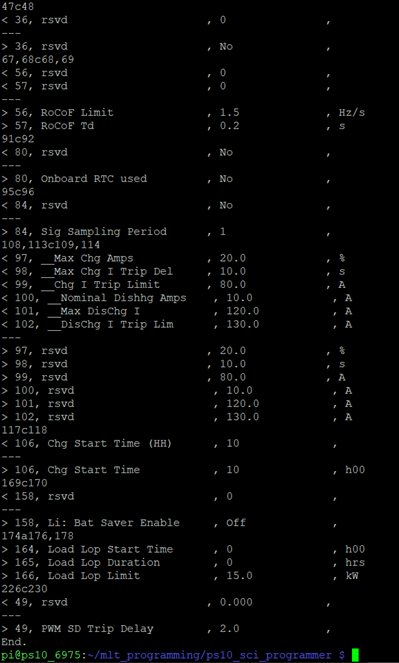

sudo bash /home/pi/scripts/ps10/prog.sh
Step3:
Restart Screens

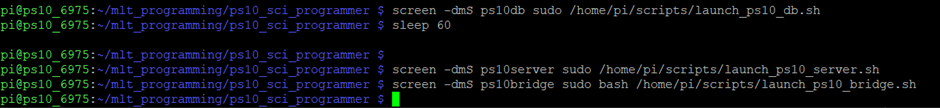

Enter the following lines into the terminal and press the enter key after you have copied them in.
screen -dmS ps10db sudo /home/pi/scripts/launch_ps10_db.sh
sleep 60
screen -dmS ps10server sudo /home/pi/scripts/launch_ps10_server.sh
screen -dmS ps10bridge sudo bash /home/pi/scripts/launch_ps10_bridge.sh
There will be a one minute pause after you enter the ‘sleep 60’ command into the terminal
After you have entered all these lines into the terminal the update is completed.
